- Place of Origin: China
- Brand Name: jinjian
- Model Number: JJHBT Series

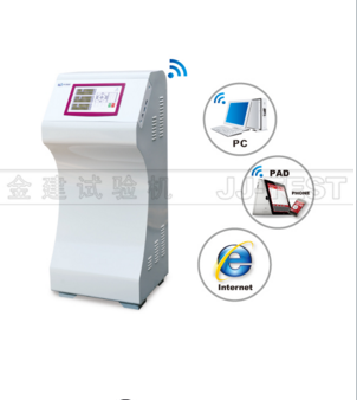

The tester is mainly used to determine the resistance of thermoplastics pipes or short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastics pipes intended for the conveyance of fluids.
It conforms to ISO 1167, EN921 and the equivalent.
The operation takes place over user-friendly, menu-prompted 8.4 touch screen and embedded WIN CE operating system, which is capable of acquiring test data, printing them as a test report in a user-definable format and enable to process, evaluate, record and file the entire data sets.
All stations run automatically and are fully independent of each other, each working at a different pressure.
- Place of Origin: China
- Brand Name: jinjian
- Model Number: JJHBT Series
Pressure: 0-16MPa;
Pressure controlling Accuracy: -1% 2%;
Display Accuracy of Pressure: 0.001MPa;
Display Accuracy of Time: 1s
The Temperature Range of the Water tank15 95;
The Temperature Controlling Accuracy of Water tank : 0.5;
The Working Time of the Timer: 1s-10000h;
The Interface of Pressure: 5
The inlet of Water tank: 5 (One inlet has been divided into 3 routs for 3 specimen at the same time)
The outlet of Water tanks: 15
Power Supply: Three phase 380V/220V.
